普通导电液胶
高导电低挥发银胶，快干，低味

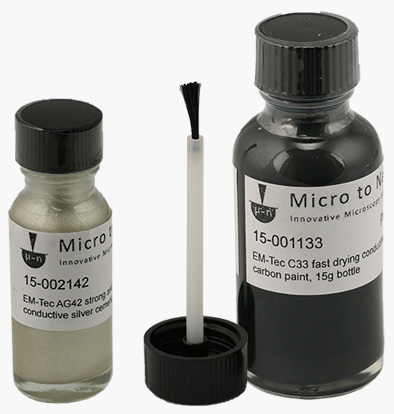

pecifications of the EM-Tec conductive paints and cements
Paint / Cement | EM-Tec
AG15 | EM-Tec AG42 | EM-Tec
NI41 |
Product # | 15-002114
15-002115 | 15-002141
15-002142 | 15-004141 |
Filler Type wt% | Silver 58% | Silver 73% | Nickel 50% |
Type | paint | thin paste | thin paste |
Resistance (dry) | 0.015 ohm/sq | 0.01 ohm/sq | 0.7 ohm/sq |
Binder | thermoplastic resin | acrylic | acrylic |
Solvent | MEK | Toluene
/acetone | Toluene/
acetone |
Density | 1.63g/cm3 | 2.05g/cm3 | 2.1g/cm3 |
Touch dry
| 10min
| 5min
| 5min
|
Full cure time @ 22°C
| 8hrs
| 24hrs
| 24hrs |
Full cure time @ 65°C | 30min | 30min | 30min |
Minimum temperature | -20°C | -40°C | -40°C |
Maximum temperature | +105°C | +120°C | +120°C |
Mechanical strength | medium | high | high |
Vacuum compatible (dry) | yes | yes | yes |
RoHs compliant | yes | yes | yes |
Weight | 15g / 25g | 15g / 25g | 25g |
Bottle size | 15cc / 30cc | 15cc/15cc | 30cc |
Thinner-Extender | MEK | Acetone | Acetone |
Shelf life @ 20°C | > 3 year | > 3 year | > 3 year |
